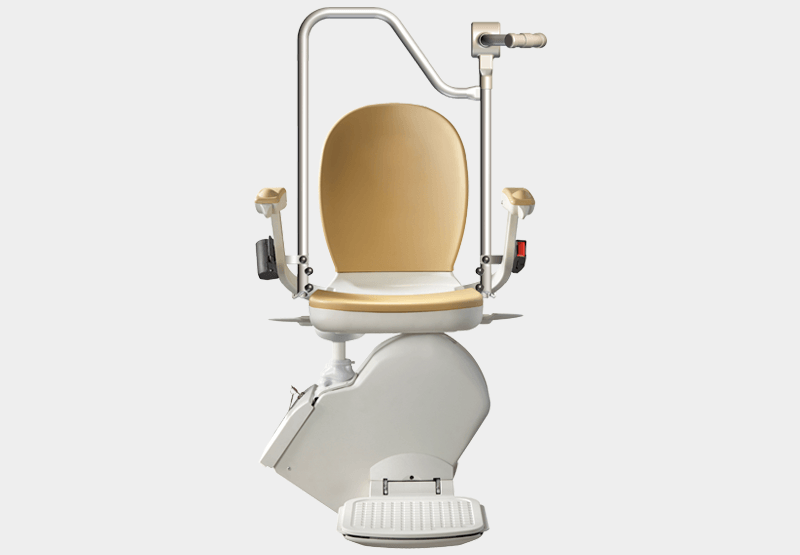

The Acorn Sit/Stand Stairlift

A solution for a variety of mobility requirements.

Some circumstances - perhaps the confines of the staircase or the specific needs of the user - call for a different type of stairlift or additional features, and Acorn can help here too.

Our Sit/Stand model combines all the great features of our stairlifts. It's perfect in a home where two people need help using the stairs but both have different requirements from the stairlift.

If you want to know more, contact us and one of our friendly, local surveyors can visit at a time suitable to you.

View Technical Details

Contact us for FREE no obligation advice and speak to one of our friendly experts.

FREEPHONE: 1800 300 812

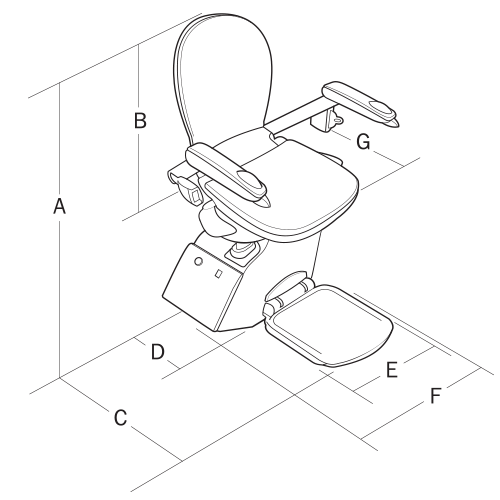

Acorn 130 Stairlift Measurements and Technical Information
Dimensions mm inch
A Overall height 1220 48
B Height of Seat 440 17.25
C Overall depth (from wall) 620 24.5
D Overall depth (when folded) 210 8.25
E Width of footrest 310 12.25
F Overall width 605 23.75
G Depth of seat 435 17

This stairlift is independently tested to comply with:

  • BS EN 81-40:2008 - European safety standard - 'Specification for powered stairlifts'.
  • CE mark - Acorn Stairlift meets the requirements of the applicable European Directive(s).
  • ASME compliant for mechanical and electrical hazards - ASME A18.1 and A17.5.
  • ISO 9386:2-2000 International standard for stairlifts.
Specifications
Motor output speed 120mm/s | 4.8inches per second - No greater than 0.15 meters per second
Method of drive Rack and pinion
Power supply 24V DC (battery)
Maximum capacity 350lbs/158kg
Track Extruded aluminium
Mains supply 50-60Hz, 100-240V AC

* NOTE: Acorn, in keeping with its policy of continual development, reserves the right to change specification without notice. All measurements are approximate.
